GKD developed the first linear screen filter fabrics which enabled screening efficiencies in excess of 95 % in certain applications. Since its inception, the linear screen has proven itself as an unmatched solution for woodchip, trash, residue screening and fine screening applications.

• Pre-engineered units: proven with short delivery times

• No vibration: no potential cracking of structural steelwork

• Range of screening apertures: process specific design

• High efficiencies: availability of more than 98 % can be realised

• Low power consumption

• Low maintenance costs: only cloths need to be replaced in first year of operation

• Low noise level: environmentally friendly

• User friendly

• Flexible: easy to change parameters

• Semi-automatic self-cleaning spray bars as a standard

• Cloth wash water pre-filtered optional

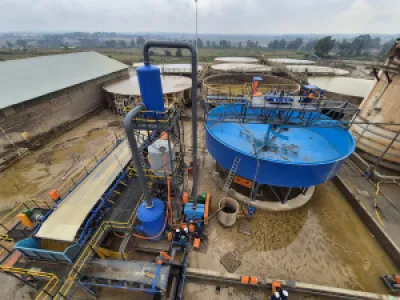

GKD has implemented the most modern engineering technologies in the development of a new generation thickener:

• Computational Flow Dynamic (CFD)
  modelling of process parameters

• Finite Element Analysis (FEA) for optimal strength to weight ratio

• New generation hinged drive systems

• Oil-bath drive lubrication systems

• 3D parametric modelling

• Detailed life cycle calculations on all mechanical components, guaranteeing
  100 000 hours operating life

GKD can offer proven technology in all major industries:

• Steel tank installations with diameters ranging from 1 m to 60 m

• Modular bolted designs requiring no welding on site and minimal transport requirements

• Concrete tank installations

• Cost effective tanks, rakes and bridges in a variety of materials of construction, including Stainless Steel

• Retrofitting of new mechanisms into existing tanks

• Drive head designs from 2 kNm to 3000 kNm

• High-rate, Conventional, Paste and Underground thickeners

• Flocculant dosing systems

• Turnkey or supply ex works options

• In-house design, local support and extensive process information database assisted by Computational Flow Dynamics (CFD) Analysis

Features:

• Automatic Rake lift

• Oil bath lubrication

• Low maintenance mechanisms

• Thixotropic rake design

• Auto load sensing

• Auto dilution

• Scum and oil removal

Leveraging our extensive expertise in belt filter design and deep knowledge of filtration fabrics, GKD Horizontal Vacuum Belt Filters represent the pinnacle of filtration technology. Our on-site service network provides us with invaluable operational insights, allowing us to design filters that are not only highly efficient but also cost-effective and easy to maintain.

Manufactured in-house under stringent quality assurance and quality control measures, GKD belt filters guarantee exceptional performance and reliability. Our commitment to excellence ensures that every filter meets the highest standards, delivering unparalleled quality to our customers.

Horizontal Vacuum Belt Filters have the following key advantages:

• Continuous operation

• Can accommodate varying feed rates and densities

• High efficiencies for cake-washing applications

• Easily accessible wear parts

• Wide throat vacuum boxes to ensure filtration efficiency

• Cloth and belt wash water pre-filtered as a standard

• Locally manufactured spares and consumables

GKD Filter Presses provide a robust, efficient pressure filtration solution for a host of filtration applications where dry filter cakes and clear filtrate solutions are a prerequisite.

Our filter presses are expertly designed to cater to a wide range of applications, from lab-scale manual presses to large, fully automated units. Leveraging GKD’s renowned expertise in woven media technology, combined with our history of manufacturing robust filters, we deliver optimized solutions tailored to virtually all industrial processes. Experience unparalleled efficiency and adaptability with our advanced filtration technology.

GKD Filter Presses are supplied with a combination of the following features:

• Full Automation

• Recess and membrane Filter Plates

• Air Blow Filter Plates

• Single or multi-plate shifting

• Cloth shaking system

• Membrane Filter Plates

Through a combination of test work conducted in our laboratory, on site field services and a wide selection of fabrics available GKD can optimise any solid/liquid separation process.

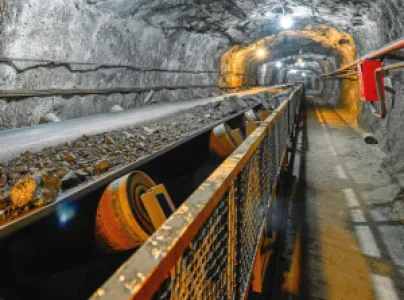

GKD also offers a comprehensive range of spares and consumables for all our solid/liquid separation equipment.

Our inventory includes essential parts and accessories for maintaining and optimizing the performance of your solid/liquid separation systems. Whether you require replacement components for Linear Screens, Vibrating Screens, Thickeners/Clarifiers, Belt Filters, Filter Presses, or Custom-built Process Plants, we have you covered.

Our selection of spares and consumables is designed to ensure the longevity and efficiency of your equipment, minimizing downtime and maximizing productivity. We provide high-quality, industry-standard components that meet the rigorous demands of various applications, from mining and metallurgy to sewage treatment and food processing.

By choosing GKD, you benefit from not only top-tier equipment but also reliable support and parts tailored to your specific needs.
Our commitment to service excellence means you receive prompt and professional assistance, ensuring that your systems remain in peak condition.

For all your spares and consumables needs, trust us to deliver the right solutions for sustained operational success.
